PRODUCTS FOR SCADA & IOT
FEATURED PRODUCTS
All listed communication products are connected to SCADACore Live out-of-the-box. Providing a full-service, ready-to-use SCADA / IoT web access for your sensors.
Omni Antenna
This omni antenna is designed for outdoor, industrial use. It covering Dual-Band 800 & 1900 MHz on 50 Ohm, providing 9 dBi gain on both 806 to 894 MHz band and 1850 to 1995 MHz frequency.
The antenna includes a mounting kit that can be used to mount the antenna on to roof or pole.
The antenna has 50 Ohm impedance and N-Female connector type. Being omni-directional, it collects signals from various cell towers in the process boosting different carrier’s signals on both bandwidths stated above. The antenna provides approximately 50 miles range to an unobstructed tower.
Summary.
- Omni-directional
- Signal boost for 2G, 3G, 4G
- Dual Band (800 & 1900 MHz)
- 9 dB Gain
- Outside use
- Weather resistant
- Easy-to-install
Omni Antenna Package
SCADACore's Antenna Package contains all equipment needed to connect cellular modems to cell towers.
- Omni antenna with pole-mounting kit
- PolyPhaser for surge protection
- 15m N-Type MNP to N-Type MNP cable
- 50cm SMA Male To N Type Male RG58 Pigtail Cable Connector
RF Surge Protector
Coaxial RF surge protector (also known as lightning surge protector, lightning surge arrestor or suppressor) DT-NFF helps protect your equipment from electromagnetic pulse (EMP) or power surges that are commonly caused by lightning or other strong electrical changes. Our radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass DC to 3 GHz while suppressing DC surge.
ViaCell-10
The ViaCell-10 is a magnetic-mount, cellular vibration monitoring device with built-in solar panel and batteries, ideal for monitoring the status of pumpjacks, compressors, generators, and more. ViaCell-10 provides run status alerts, GPS coordinates, as well as temperature readings.
- Cellular monitoring for Pumpjacks, Compressors, Generators, Towable Generators, Motors, Pumps, Rental Units, Run Status, and More
- Vibration Sensor, Temperature, GPS
- Out-of-the-box web portal to access asset status online (2 month trial*)
- Alarm Callout / Alarm Notifications via SMS, Email, and / or Voice Messages
- Escalating call lists can be set up to notify available staff of shutdowns
- Built-in Solar Panel and rechargeable battery
- 8cm x 15cm x 4cm
- Temperature: -30˚ C to +65˚ C
- Magnetic Mount
ALL-IN-ONE SCADA / IIOT SOLUTIONS
END-TO-END MONITORING PACKAGES
SCADACore provides complete and tested SCADA / IIoT packages for your applications. All our packages are pre-configured and are connected to SCADACore Live out-of-the-box, providing immediate web access functionality to your sensors.
CUSTOMIZABLE LAYOUTS

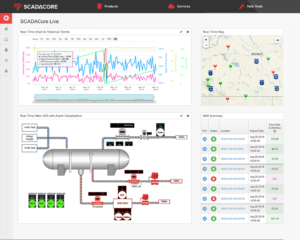

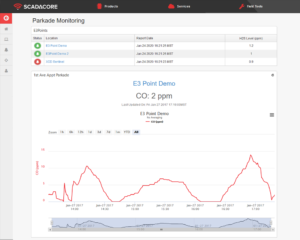

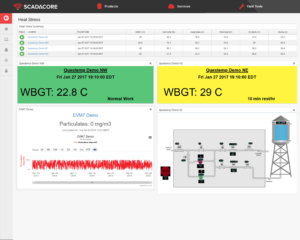

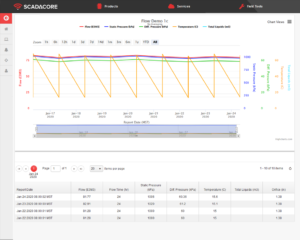

SCADACORE LIVE
Dashboard for SCADA / IoT Access.
Cellular Monitoring Solution
Status, Levels, & Alarms
For Tank Levels, Pumpjacks, and Compressors
$599.00
SCADACORE SOLUTIONS
FEATURED CATEGORIES
SCADACore provides complete end-to-end monitoring solutions for sensors world-wide.
