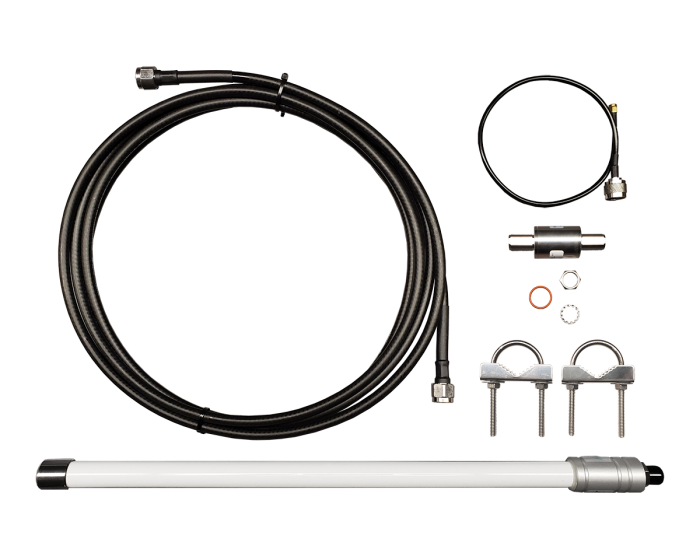

SCADACore’s Antenna Package contains all equipment needed to connect cellular modems to cell towers.
- Omni antenna with pole-mounting kit
- PolyPhaser for surge protection
- 15m N-Type MNP to N-Type MNP cable
- 50cm SMA Male To N Type Male RG58 Pigtail Cable Connector
Omni Antenna with pole-mounting kit
The package contains an omni antenna covering Dual-Band 800 & 1900 MHz on 50 Ohm providing 9 dBi gain on both 806 to 894 MHz band and 1850 to 1995 MHz frequency. The antenna package includes a mounting kit that can be used to mount the antenna on to roof or pole.
PolyPhaser
A PolyPhaser is included to provide surge protection and mounting through an enclosure. Type N F/F Bulkhead Coaxial RF Surge Protector, 698MHz – 2.7GHz, DC Block, 500W, IP67, .005uJ, 40kA, Filter.
PolyPhaser coaxial RF surge protector (lightning surge protector, lightning surge arrestor, or suppressor) helps protect your equipment from electromagnetic pulse (EMP) or power surges that are commonly caused by lightning or other strong electrical changes. The radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass 698 MHz to 2.7 GHz while suppressing DC surge.
While this radio frequency lightning surge suppressor operates in a range of frequencies from 698MHz to 2.7GHz, it is supporting a power handling maximum of 500 Watts. RF surge protector TSX-NFF from PolyPhaser incorporates surge filter technology to provide protection for equipment at up to the max. power of 500W. Our coax surge protection device for RF is manufactured with a type N bulkhead connection in and a type N bulkhead out.
It is constructed with a female gender for the input and female for the output. This F/F N type to type N surge protecting component for RF has a let-through energy of .005uJ. The coaxial lightning surge arrestor is IP rated, it has an IP67 rating. Our N type bulkhead coaxial lightning surge protector is REACH and RoHS compliant.
